$49,995.00 $51,975.00
Flagship 1U Performance for Cloud, AI, and High-Density Workloads
The Supermicro Hyper SYS-112H-TN-02-G2 is a powerhouse engineered for the modern data center. As part of the prestigious Gold Series, this pre-configured rackmount server is optimized for scale-out cloud workloads, virtualization, and AI inferencing. Delivering flagship-level performance in a compact 1U form factor, it provides the perfect balance of compute density and high-speed storage.
• Dual Intel Xeon Scalable Processors
• High-density 1U rackmount design
• Optimized for data center and enterprise workloads
• Advanced cooling and power efficiency
• Ideal for virtualization, storage, and networking applications
Order Type: Special Order (Non-cancellable)
High-performance enterprise server designed for mission-critical workloads and scalable infrastructure environments.
Key Performance Drivers
-
Next-Generation Computing: Powered by a single Intel® Xeon® 6 Processor (6700/6500 series). Whether you require high-frequency P-cores (up to 86 cores) for intensive compute or high-efficiency E-cores (up to 144 cores) for massive multi-tenancy, this server scales to your needs.
-
Massive Memory Footprint: With 16 DIMM slots, the system supports up to 4TB of ECC DDR5 RAM. Utilizing MRDIMM technology, you can achieve speeds up to 8000MT/s, drastically reducing latency for data-heavy applications.
-
PCIe 5.0 Throughput: Leap ahead with double the bandwidth of the previous generation. This server supports up to 3 PCIe 5.0 slots, including a double-width card option for high-performance GPUs like the NVIDIA L40S or Intel Data Center Flex 170.
-

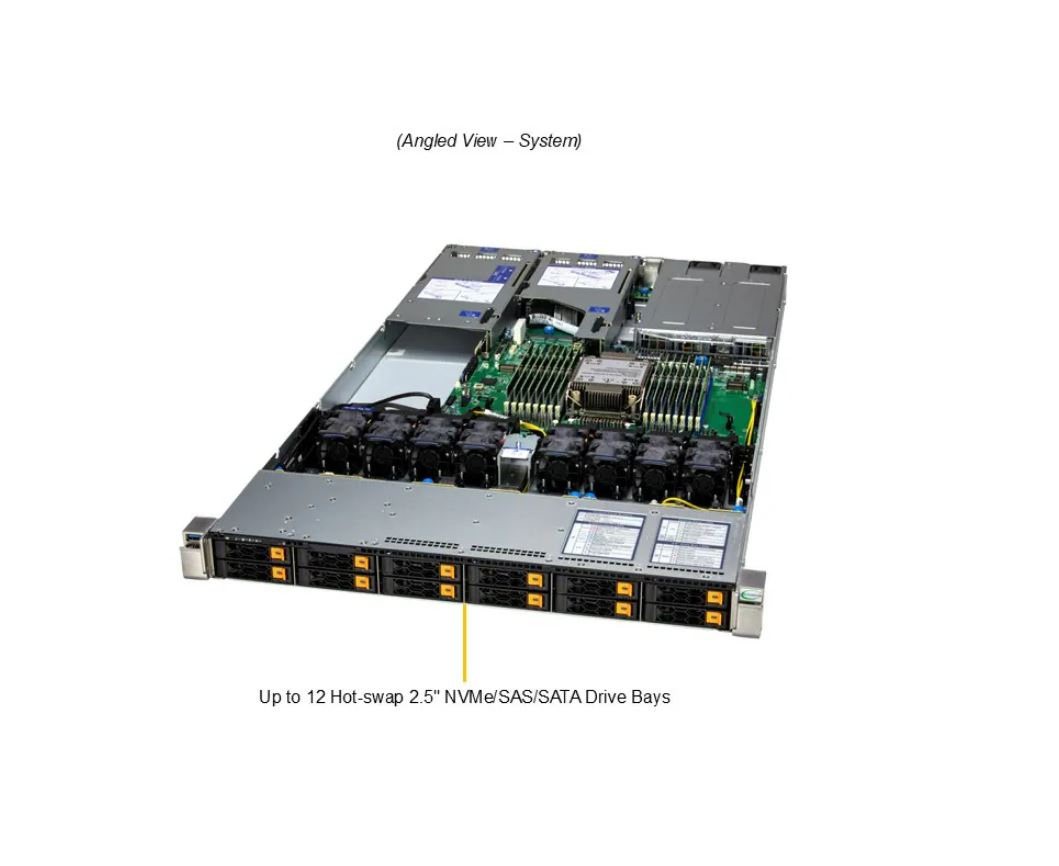

High-Density Storage: The front-loading chassis features 8 to 12 hot-swap 2.5″ bays compatible with NVMe, SAS, and SATA. Coupled with dual onboard M.2 NVMe slots, your boot times and data access speeds are optimized for peak performance.
Technical Specifications
| Feature | Specification |
| Form Factor | 1U Rackmount (Depth: 30.66″) |
| Processor | 1x Intel® Xeon® 6 (Socket E2 LGA-4710) |
| Memory Capacity | Up to 4TB DDR5 5200MT/s (RDIMM) |
| Expansion Slots | 1 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 x16 FHFL (Double-Width), 1 AIOM |
| Networking | 1 Dedicated BMC LAN; Flexible AIOM (OCP 3.0 Compatible) |
| Power Supply | Dual 1200W Redundant Titanium Level (96% Efficiency) |
| Security | TPM 2.0, Silicon Root of Trust (RoT), Secure Boot |
| Management | SuperCloud Composer, SSM, SAA, and IPMI 2.0 |
Why the Gold Series is a Wise Choice
1. Uncompromising Reliability & Efficiency Equipped with 1200W Titanium Level redundant power supplies, this server operates at 96% efficiency, significantly reducing TCO (Total Cost of Ownership) through lower energy consumption and heat output.
2. Enterprise-Grade Security Security is baked into the hardware. Featuring NIST 800-193 compliant Silicon Root of Trust (RoT) and cryptographically signed firmware, your data remains protected from the moment of boot-up through runtime.
3. Future-Proof Scalability The modularized, tool-less design ensures easy serviceability and upgrades. With support for AIOM (Advanced I/O Module) networking, you can swap networking interfaces (10G, 25G, 100G) without consuming your primary PCIe expansion slots.
4. Optimized Thermal Management Featuring 8 counter-rotating fans and a dedicated CPU air shroud, the SYS-112H-TN-02-G2 maintains peak performance even under heavy GPU and CPU loads, preventing thermal throttling.
Ready to deploy? This Gold Series pre-configured unit is designed for rapid integration into your existing infrastructure. Ensure your data center is ready for the next generation of Intel Xeon 6 performance.
Note: This is a special-order item and is non-cancellable. Please verify all technical requirements with our sales team prior to purchase.
